汽车和航空航天

多年来,微观组织和织构的表征对于汽车和航空航天工业中高强度、轻量化材料的开发至关重要。EBSD是这一领域的关键分析技术,它结合了快速和完整的微观组织表征与分析,具有最新的超细晶粒和纳米结构材料所需的高分辨率。EBSD在汽车和航空航天领域的应用实例广泛而多样,包括以下内容:

  • 轧制金属板的快速织构和晶粒尺寸分析
  • 先进轻质合金的微观组织表征
  • 高强度钢的相分析
  • 热障涂层的表征
  • 材料的失效分析

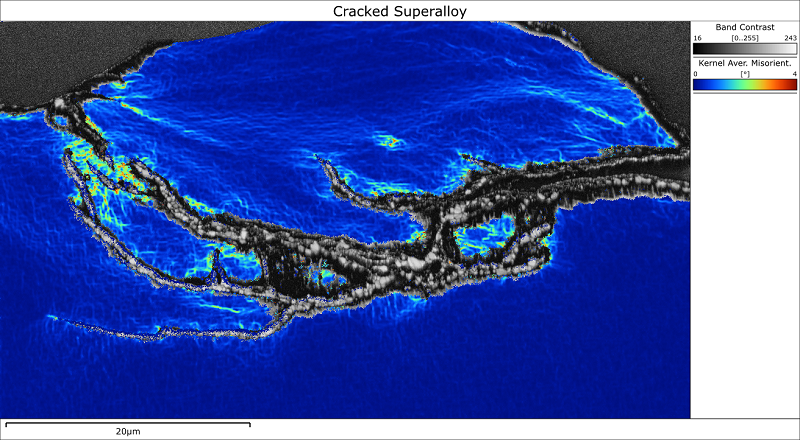

EBSD KAM图,突出显示与涡轮叶片裂纹相关的Ni基超级合金中的塑性应变
KAM图突出显示与涡轮叶片裂纹相关的Ni基高温合金的塑性应变。感谢Henry Royce Institute, Manchester提供样品。

Application Notes

Evaluating Dislocation Densities and Slip Systems in deformed Titanium using EBSD

Discover how EBSD can be used to characterise the dislocation type and densities in deformed metals and alloys, enabling a better understanding of the material’s physical properties. Here we compare 2 deformed Ti alloys, showing how advanced dislocation analysis using AZtecCrystal highlights the operation of different slip systems during deformation.

了解更多
Direct Observations of Phase Transformations using High Temperature EBSD

Learn about a new phosphor screen for the Oxford Instruments CMOS EBSD detector range that uses an optical interference filter to block out the infrared signal during high temperature EBSD experiments. This new technology enables faster and more sensitive analyses of microstructural changes measured in-situ at high temperatures.

了解更多
Evaluating parent grain reconstruction in Titanium using high temperature in-situ EBSD

Learn how parent grain microstructures can be reconstructed from low temperature EBSD analyses using AZtecCrystal. Here, the reconstruction results for a Titanium sample are tested using in-situ EBSD analyses of beta-Ti collected at >900 °C using a new type of high temperature phosphor screen. The results indicate an excellent agreement between the as-measured and reconstructed beta-Ti microstructures.

了解更多
Rapid Classification of Advanced High Strength Steels using EBSD

Here the high analysis speed of the Symmetry S2 EBSD detector is combined with the advanced data processing capability of AZtecCrystal to characterise the complex phase distribution in 2 quenching and partitioning (Q&P) processed high strength steels.

了解更多
EBSD Characterisation of a high-strength lightweight steel

Understanding microstructure is fundamental to producing steels with specific mechanical properties for automotive applications. The integration of EBSD & EDS is a powerful microanalytical solution for monitoring microstructure, which aids the understanding of the relationship between materials processing, microstructure and performance...

了解更多
AZtecSynergy and BLG CrossCourt 3 EBSD Characterisation of a Crept Nickel Alloy

Microanalysis is a powerful tool in understanding potential failure mechanisms and potential life time of many materials. In this example, the microstructure and damage distribution following creep deformation of a nickel superalloy is studied using EBSD and EDS

了解更多

Webinars

Characterising and monitoring materials developed for use in extreme environments

Learn how the combination of EDS & EBSD on an electron microscope can be applied to the characterisation of materials ensuring manufacturing and product reliablity.

Watch on demand
Parent microstructure optimisation in steels and alloys using EBSD-based reconstruction

In this webinar, where are joined by one of the developers of a new approach to parent grain reconstruction, Dr Hung-Wei (Homer) Yen, who will be discussing the importance of understanding parent microstructures in the steel industry.

Watch on demand
